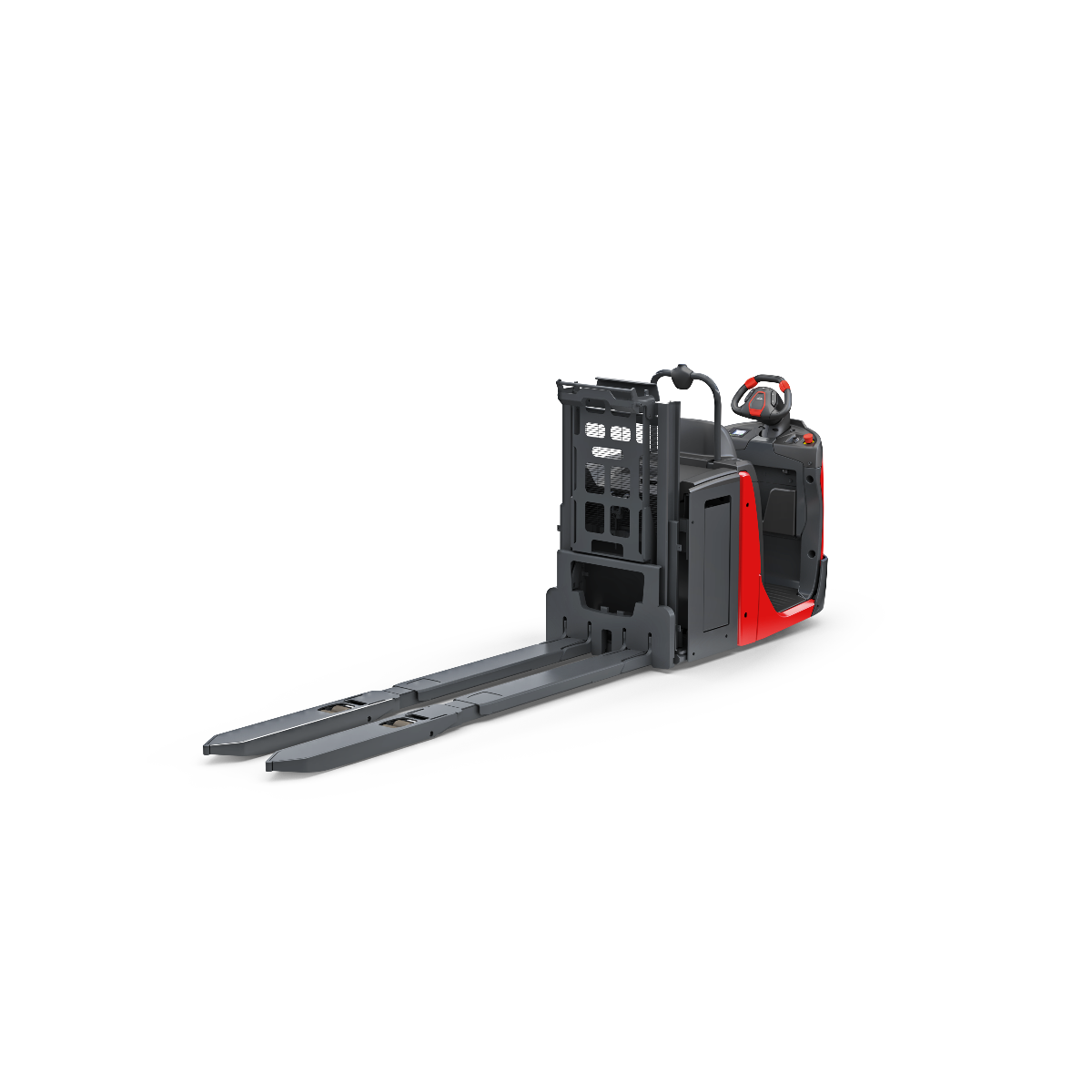

N20 LoL Series 1115 Electric Order Picker
A user-friendly solution for double-pallet picking
The Linde N20 LoL Series 1115 Order Picker maximises pallet handling efficiency by enabling the transport of two pallets in a single picking cycle. With long load arms and an additional liftable fork, it handles lifting capacities from 0.8 to 2.0 tonnes, making it ideal for moving pallets throughout the warehouse. The integrated Linde steering wheel controls and active castor wheels ensure smooth operation and maintain traction during loading and unloading.
Automatic speed reduction when navigating curves, with enhanced braking performance under heavy loads.
Controlled lowering of the load arms for smooth, gentle placement of loads.
Automatic stop triggered if the driver’s platform is unoccupied or the emergency button is pressed.
Fully suspended operator compartment minimises vibrations and shocks transmitted to the steering wheel and platform.
Low platform entry allows for quick and easy boarding.
Liftable forks position pallets at an optimal height, reducing operator strain.
Optional pallet locking device secures safe transport and allows easy release of a second pallet.
Powerful 3 kW three-phase AC drive motor delivers strong and efficient acceleration.
Capable of reaching speeds up to 12 km/h, even when fully loaded.
Electric steering with ground sensors ensures reliable and precise control.
Adjustable Linde steering wheel offers intuitive and comfortable operation.
Preventative maintenance servicing is only required every 1,000 hours, this ensures high truck availability and makes these trucks extremely cost-effective to run.
Maintenance-free AC motors and adjustment-free brakes.
CAN bus connectivity enables all truck data to be read out on a laptop.
