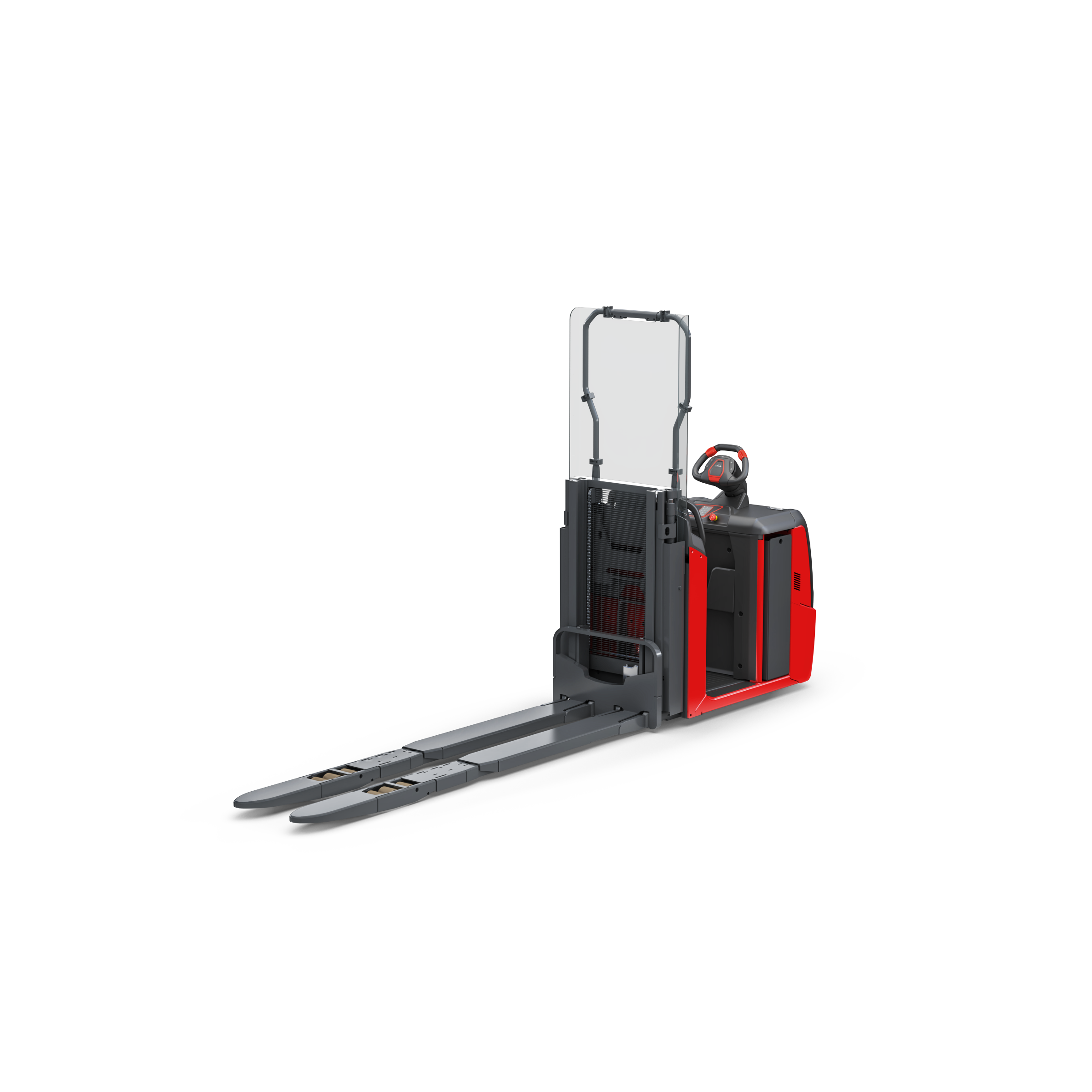

N20 C LoL Series 4589 Electric Order Picker
Double-pallet picking in a single cycle
The Linde N20 C LoL Series 4589 Order Picker allows for consecutive handling of two pallets in one picking cycle thanks to its extended forks. Capable of transporting up to 2.0 tonnes at a top speed of 9 km/h, it ensures operator safety with features like gradient start protection to prevent rollback.
Engineered for consistent performance in demanding environments, the motor, sub-components, and electronics are all securely housed within a durable front chassis.
Equipped with an electromagnetic braking system.
Four points contact configuration for maximum stability on ground.
Automatic speed reduction when cornering.
Proportional electric power steering.
Wide platform access with a low step-in height for easy entry.
Cushioned, ergonomically rounded backrest for added comfort.
Platform lift control is intuitively positioned on the Linde steering wheel for one-handed operation.
OptiLift system provides smooth, proportional lifting and lowering of the platform.
Optional pallet locking device secures safe transport and allows easy release of a second pallet.
High-torque 3 kW AC drive motor paired with a 2.2 kW lift motor for strong performance.
Handles gradients up to 7% when fully loaded.
Safe, rollback-free starts on inclines.
Traction speeds of 9 km/h when fully loaded and 12 km/h unladen.
Battery capacity options from 345 Ah to 620 Ah.
Preventative maintenance servicing is only required every 1,000 hours, this ensures high truck availability and makes these trucks extremely cost-effective to run.
Maintenance-free AC motors and adjustment-free brakes.
Integrated CAN bus diagnostic system enables fast analysis and short service intervals.
