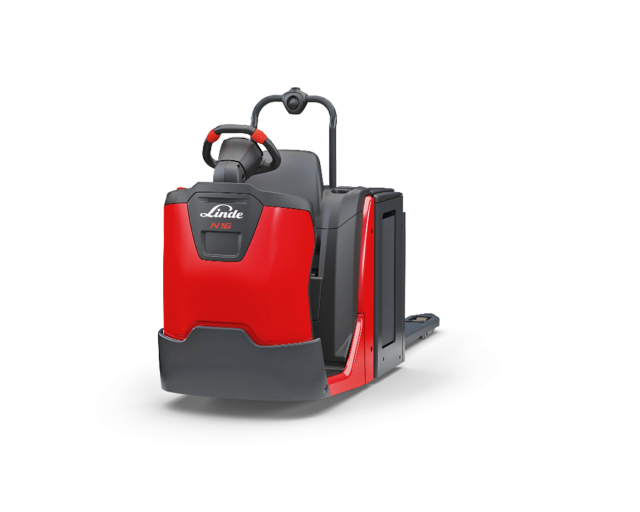

N16 Li Series 1115 Electric Order Picker

Efficient and Ergonomic Pallet Order Picking

The N16 Li order picker from Linde Material Handling streamlines the order picking process with high efficiency. Its strategic placement of the operator platform in front of the battery ensures excellent visibility in the warehouse. The truck's compact design allows for precise maneuvering even in narrow aisles.

  •   Lift Capacity 1.6 tonne
  •   Engine Li-ION or Lead-acid batteries
  •   Lift Height 0.55m
  •   Range Performance Plus

The lift function enables the forks to be raised to an ergonomic height of up to 790mm for efficient loading. The optional Autolift feature automatically adjusts the fork height as the load's height increases, eliminating the need for manual lift operation. This ensures uninterrupted and optimal order picking. The fully spring-loaded operator platform absorbs vibrations and shocks during transport, enhancing operator comfort and productivity.



- Three-part braking system adapts to both the environment and the current load weight.

- The electromagnetic service brake is coupled with a dead man’s switch and the emergency-stop button.

- The hydraulically assisted brake increases braking power as the load weight increases.

- Truck stops automatically when the operating control is released.

- When cornering, the N16 Li reduces its speed to protect the operator and goods.

- Optional load backrest stabilises the load, ensuring the safety of the operator.

- Self-centring power steering requires only a small amount of steering angle, reducing driver movement within the operator platform.

- Additional options such as a front LED and Linde BlueSpot™ maximise safety in the warehouse.


- Operator platform with a low access height of 13.7cm allows for easy entry and exit.

- All contours of the platform are rounded, and numerous compartments and holders provide storage space for necessary equipment.

- The lifting forks help the operator pick orders at a back-friendly height. This can be supplemented by the Autolift option, which automatically adjusts the height of the forks according to the load height.

- For short distances, the operator can control the forklift truck using the pedestrian function.

- Linde steering wheel and the backrest with fold-out seating support are adjustable.

- Operator platform is fully spring-loaded and reduces vibrations and jolts while operating.

- Clear symbols on the control elements allow new operators to quickly get familiarised with the system.


- Powered by a 3kW AC motor, the N16 Li quickly accelerates to a top speed of 12 km/h.

- Four-point contact with the ground ensures high stability.

- An initial lift function facilitates transport over ramps and bumps.

- Optionally available Lithium-ION battery, decreases the recharge time.

- Multifunction display keeps the operator updated about the current charge status of the order picker.

- Intuitive control symbols on the steering wheel show the functions of the most important commands at a glance.

- Optional Autolift function eliminates unnecessary movements by automatically lifting and lowering the forks.


- Runs for up to 1,000 operating hours without a service check.

- AC motor is maintenance-free and there is no need for the brakes to be readjusted.

- All components are easily accessible to the technician after removal of a service panel.

- CAN bus connectivity enables all truck data to be read out on a laptop computer by the service technician making the service process easier.

- Robust cast steel bumper protects the spring-loaded operator platform and thus reduces collision damage.
