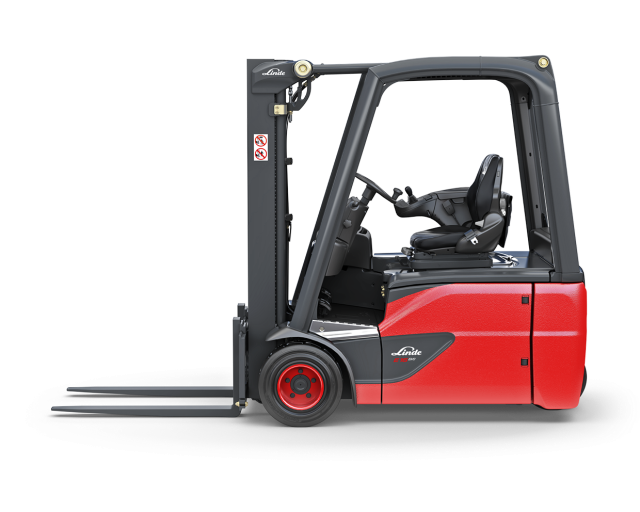

E12-E20 EVO Series 386 Electric Forklift (3 WHEEL)

The E12-E20 EVO series features a broad selection of three-wheeled trucks with varying battery sizes, overall heights, and aisle widths, allowing customization to meet individual customer requirements.

These trucks excel at precise load handling in confined spaces, thanks to their turntable axle that enables a 180-degree turn with a single steering wheel movement. With two AC motors integrated into the front axle and powered by 24 or 48-volt batteries, they deliver robust performance, impressive acceleration, and high speeds.

  •   Lift Capacity 1.2 - 2.0 tonne
  •   Engine Li-ION or Lead-acid batteries
  •   Lift Height Options available up to 5.47m
  •   Range Performance Plus


An efficient energy management system optimizes battery usage, reducing consumption. Additionally, all E12-E20 EVO forklift models can be fitted with Li-ION batteries for efficient multi-shift operation without the need for battery replacements.

Features

Safety

- The Linde Protector Frame creates a secure enclosed safety zone to safeguard the operator.

- Overhead tilt cylinders enhance mast stability, allowing for slim, nested lift mast profiles that provide the operator with an excellent view of the load and work surroundings.

- The control system's circuits are highly reliable, ensuring operational safety.

- Traction control guarantees optimal power distribution, even in challenging conditions.

- For added protection, a variety of optional safety systems are available both as factory-installed and retrofit solutions.

Ergonomics

- Ergonomically designed for efficient, fatigue-free working

- Spacious operator’s compartment with generous floor plate area

- Cushioned comfort – mast and drive axle are isolated from the chassis and cab by a unique resilient suspension system that absorbs shock loadings

Handling

- The three-wheel forklift offers exceptional maneuverability with its 180-degree turnable steering wheel.

- The opposing motion of the two front wheels during steering minimizes tire wear and floor protection.

- Low steering resistance contributes to energy savings.

- Linde Load Control, combined with the dual-motor front drive, ensures precise load handling.

- Operators can effortlessly control lift mast functions, allowing simultaneous lifting and tilting with fingertip precision.

- Plus, customizable driving dynamics enable performance adjustments to suit the specific operating conditions.

Service

- Scheduled preventative maintenance is needed only every 1000 hours.

- Hydraulic oil change is warranted after 6000 hours of operation.

- Transmission oil replacement is only required after 3000 operating hours.

- With convenient access to all components through service panels, maintenance tasks are streamlined and minimized.

- Crucial, heavily stressed truck components are entirely maintenance-free, including the integrated drive axle with brakes and AC motors, the mast and tilt cylinders, and the reduction gear.

- Spare parts are straightforward to install.

Applications


  •   Stacking
  •   Transporting
  •   Storage
  •   Order Picking
