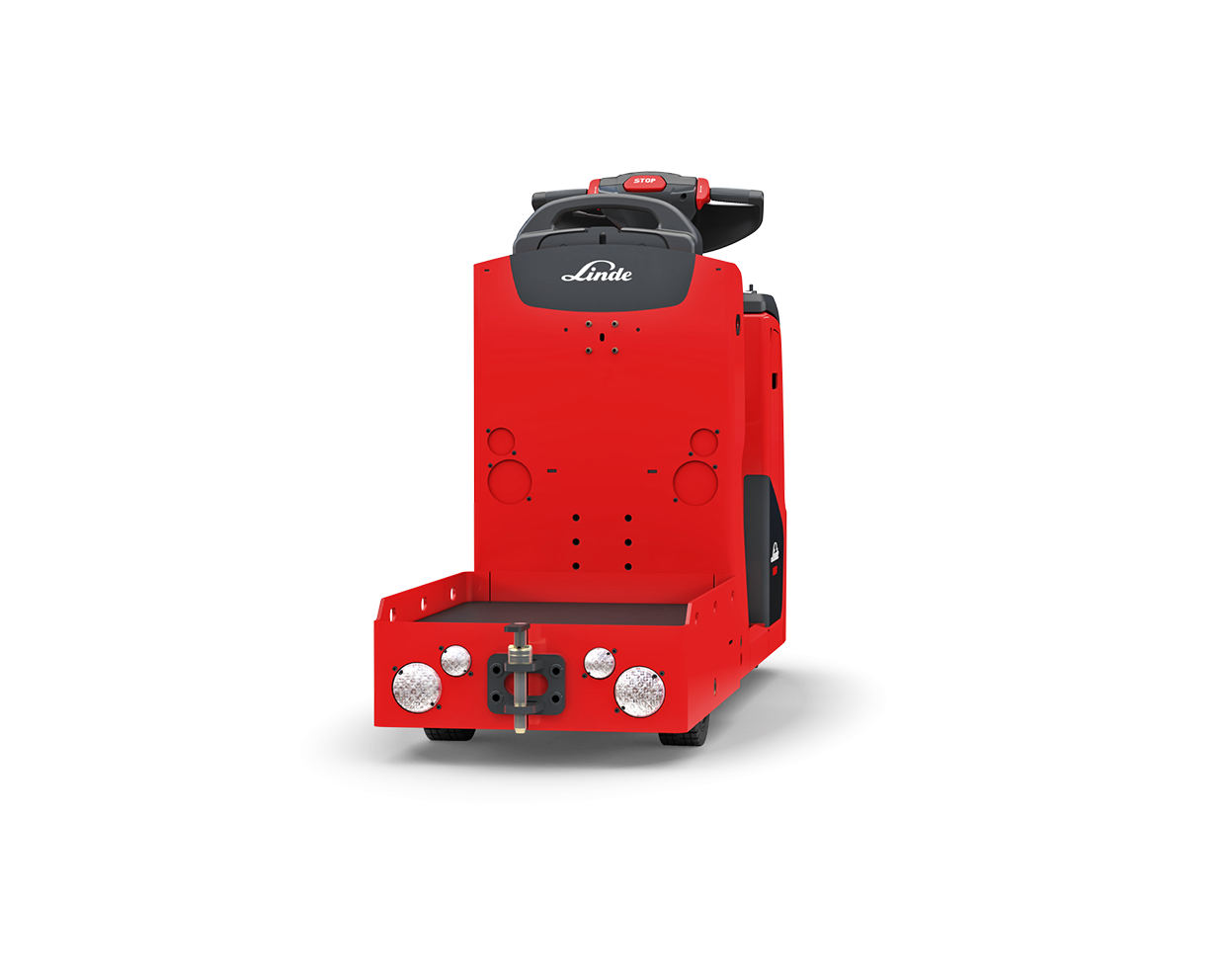

W04 Series 1193 Electric Tow Tractor

Ensuring Safety and Maneuverability with a Sleek Design

Linde's W04 platform truck is ingeniously engineered with a slender design to promote safe and efficient operation in narrow aisles and confined spaces. This compact powerhouse can effortlessly handle loads of up to 400 kilograms.

  •   Lift Capacity 0.4 tonne
  •   Engine Lead-acid battery
  •   Lift Height N/A
  •   Range Performance


Features

Safety
- Despite the compact, narrow chassis, the operator is still protected while driving and always remains within the rounded confines of the truck.
- The two-handled ergonomic steering unit prevents wide-sweeping steering movements and also protects the hands.
- An automatic parking brake prevents accidental rolling.
Erogonmics
- The height-adjustment feature of the seat allows the operator to fold the seat down and continue to drive comfortably over long distances in a seated position.
- The height of the steering unit can be adjusted to make the operation easier.
- A low step makes it easy to get in and out of the truck.
- Large storage compartments located on top of the battery cover and under the seat allow the driver to have their tools close at hand.
- Wide handle bar reduces steering effort.
- Backrest with side support.
- Knee protection pad.
Handling
- Precise, direct and responsive steering.
- Maximum manoeuvrability due to turning radius 1,100 mm.
- Towing attachment control for easy coupling and decoupling.
- Coupling is always in excellent view of operator.
- Manual wire guided hook can be operated without leaving operator’s platform.
Service
- To check the central data of the truck, the service technician does not have to open any kind of cover as the W04 uses the CAN bus system to connect to a laptop, this allows the technician to precisely match the data obtained with the appropriate application.
- All relevant truck components can be accessed quickly and easily.
- The AC motor is dust and water resistant and maintenance free, reducing the amount of time and energy spent on service.
Optional Equipment

- Tow hitch

Applications


  •   Stacking
  •   Transporting
  •   Storage
  •   Order Picking
