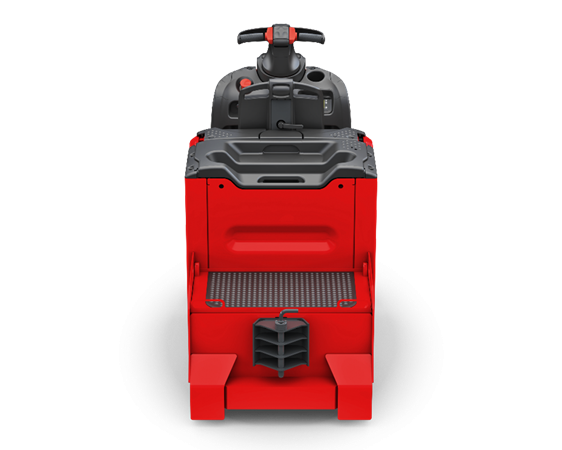

P30 Series 1190 Electric Tow Tractor

Navigate and Transport Goods Safely and Efficiently in Tight Aisles

The P30 electric tow tractor and platform truck are the ideal solution for flexible and secure transport over short and medium distances, even in the most confined spaces. The truck is equipped with precise self-centering power steering, which the operator safely manages using the ergonomic two-handled steering unit. Additionally, the P30's compact design simplifies maneuvering in narrow aisles.

  •   Lift Capacity 5.0 tonne
  •   Engine Lead-acid battery
  •   Lift Height N/A
  •   Range Performance Plus


The robust AC motor provides rapid acceleration to its maximum speed. To ensure comfort and stability during operation, the trucks come with an adjustable backrest and a fully suspended standing platform featuring a non-slip floor covering. With a maximum load capacity of 3.0 tonnes and a top speed of 10 km/h, the P30 is both powerful and agile.

Features

Safety

- Compact steering unit design prevents wide-sweeping movements, thus increasing operator safety.

- Operator works within the protective confines of the truck behind a four millimetre thick steel chassis.

- Ergonomic steering unit handles provide a safe grip and protect the hands.

- Non slip floor covering increases the stability of the operator.

- When cornering, the truck automatically reduces its speed.

- Hill-start assist prevents the P30 from rolling backwards on gradients.

Ergonomics

- Full-suspension platform and cushioned foot mat prevent the operator from experiencing strong vibrations.

- Adjustable backrest helps relieve strain on operator while driving.

- Wide, spacious storage compartments perfect for keeping all of the operator’s tools close at hand.

- All control elements are intuitive and ergonomic, making them easy to use.

Handling

- Powerful 3kW AC motor accelerates quickly to its maximum speed, even when the truck is pulling its maximum 3.0 tonne load capacity.

- Increased handling performance even during rigorous continuous operation, together with effective brakes, ensures that the truck comes to a stop quickly.

- Precise power steering and compact design simplifies many manoeuvres when limited space is available.

Service

- The truck undergoes a quick service test after every 1000 operating hours.

- CAN bus connectivity enables all truck data to be read out on a laptop computer by the service technician making the service process easier.

- All truck components can be easily accessed.

- The AC motor is maintenance-free.

Applications


  •   Stacking
  •   Transporting
  •   Storage
  •   Order Picking

Learn More



Datasheet PDF
