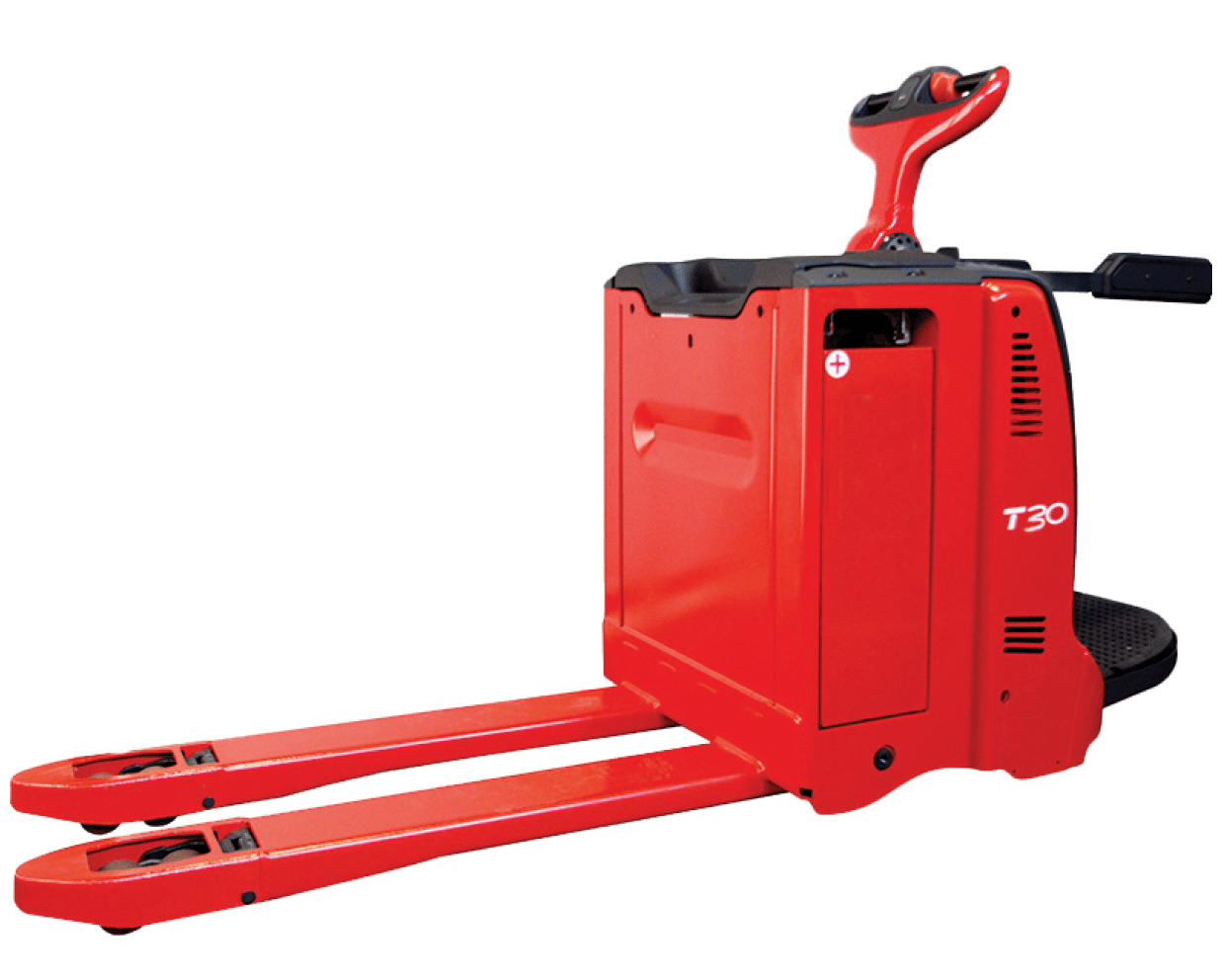

T30 (AP) Series 1158 Electric Pallet Truck

Simplified Load Handling with a Compact Chassis

The T30 pallet trucks by Linde Material Handling are specifically engineered for operation in confined and frequently accessed storage areas. Their narrow chassis design significantly simplifies the task of handling loads.

The ergonomically designed tiller head features intuitively arranged control elements, enabling the operator to effortlessly maneuver the pallet truck with either their right or left hand. In tight turns, precise maneuvering is achievable at a creep speed when the tiller is held in a vertical position. This ensures the safety of both goods and the truck, as well as the well-being of other employees. When the operator releases the butterfly steering or alters the travel direction, the truck's automatic braking system comes into play, enhancing safety and control.

  •   Lift Capacity 3.0 tonne
  •   Engine Lead-acid battery
  •   Lift Height 0.125m
  •   Range Performance Plus



The highly functional design of the Linde T30 provides optimum protection for the operator.

- Low steel chassis surround ensures the wheels always rotate safely within the truck contours

- The smooth, rounded profiles of the chassis and tiller head enhances operator safety and eliminates snagging in confined areas

- Safety reversing switch on tiller head prevents operator being squeezed against the wall

- Hand and foot protection complying to safety codes

- Emergency stop switch


- The operator controls all functions via the ergonomic, two-handed tiller head

- A button for the creep speed function facilitates precise handling in tight spaces; to do this, the operator holds the tiller in an upright position

- User-friendly multifunction display ensures the operator is always informed about the current status of the truck

- The operator can store work equipment such as gloves or packaging film in a spacious storage compartment

- Hand grips made of material that’s pleasant to the touch

- Sturdy metal hand guard

- Controls convenient to operate when wearing gloves

- Ergonomically optimised placing of work accessories


- Powerful 1.5kW AC motor accelerates the T30 to a speed of up to 6 kilometers per hour, making it suitable for transporting heavy loads over short to medium distances or for loading and unloading trucks

- Creep speed function enables precise manoeuvring and offers optimum stability when handling loads, this is also supported by the narrow design of the robust chassis

- Arrow-shaped fork tips make it easier to pick up foil wrapped pallets


- Maintenance intervals are minimal which in turn reduce operating costs

- CAN bus allows for quick diagnosis for servicing

- 1000 operating hours between services

- Integrated diagnostic system

- Easy service access

- Performance parameters can easily be configured to match the requirements of individual applications

- Robust construction

- Maintenance-free AC motor

Optional Equipment

- Alternative fork lengths and widths

- Vukollan-tyred drive wheel

- Grooved rubber-tyre drive wheel

- High-grip tyred drive wheel for wet and slippery surfaces

- Cold store version for temperatures down to -30°C


  •   Stacking
  •   Transporting
  •   Storage
  •   Order Picking
