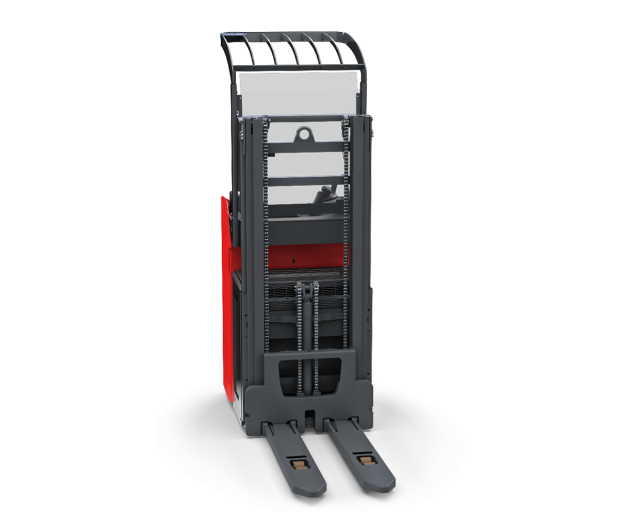

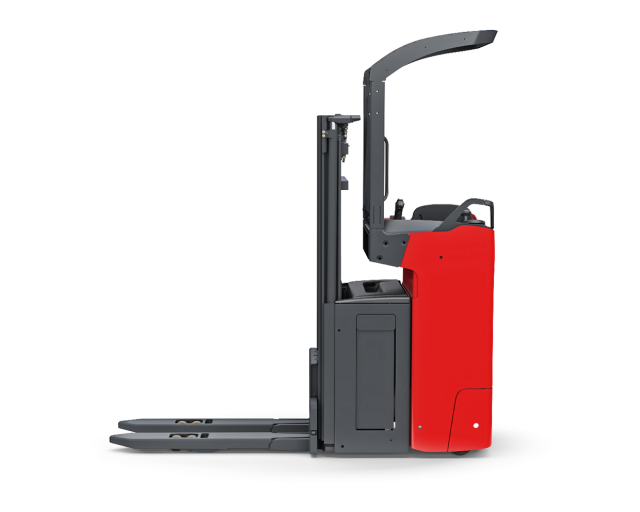

L14 - L16 R/Ri (RW) Series 1174 Electric Pallet Stacker

Effortless Operation in Any Scenario.

The L14–L16 R pallet stackers can achieve lifting heights up to 5316mm and are well-suited for secure loading and unloading of trucks via ramps or bridge plates, thanks to the optional initial lift and overhead guard.

  •   Lift Capacity 1.4 - 1.6 tonne
  •   Engine Li-ION or Lead-acid batteries
  •   Lift Height Options available up to 5.31m
  •   Range Performance Plus


With a compact width of 820mm (R/Ri) and 970mm (RW), these trucks combine maneuverability with comfort. The lateral and elevated seating position provides operators with an excellent view of their loads and surroundings. Equipped with a robust 3 kW motor, these vehicles can reach speeds of up to 10 km/h, and the ECO mode reduces energy consumption by 12%.

Features

Safety

- Operator's body is situated safely inside the chassis contour at all times.

- Overhead guard provides additional safety against falling loads.

- Optional Linde Load Management system measures data such as residual capacity and warns the operator when the load reaches the permissible limit.

- Automatic levelling system also ensures that all wheels continuously touch the ground, thus stabilising the vehicle.

- Soft landing function automatically brakes the forks so that loads can be lowered very gently.

Ergonomics

- Seat is turned 90° to the direction of travel, and has three independent adjustment options as well as integrated control elements. This allows the operator to assume an optimal position in which they can work fatigue-free.

- Height of the operator's workstation can be adjusted to best suit the operator by means of an adjustable foot platform.

- Padded entry handle also provides easy access to the vehicle.

Handling

- Powerful 3 kW AC motor and reach speeds of up to 10 km/h.

- Robust chassis offers high residual capacities of 1.4-1.6 tonnes, ensuring high productivity.

- Compact 820mm wide chassis and the intuitive one-handed control provide excellent manoeuvrability even in confined work environments.

- Lateral battery replacement is particularly easy because of the metal rollers in the battery compartment.

Service

- Easily accessible components

- Maintenance-free technologies.

- CAN bus connectivity enables all truck data to be read out on a laptop computer by the service technician making the service process easier.

Applications


  •   Stacking
  •   Transporting
  •   Storage
  •   Order Picking
