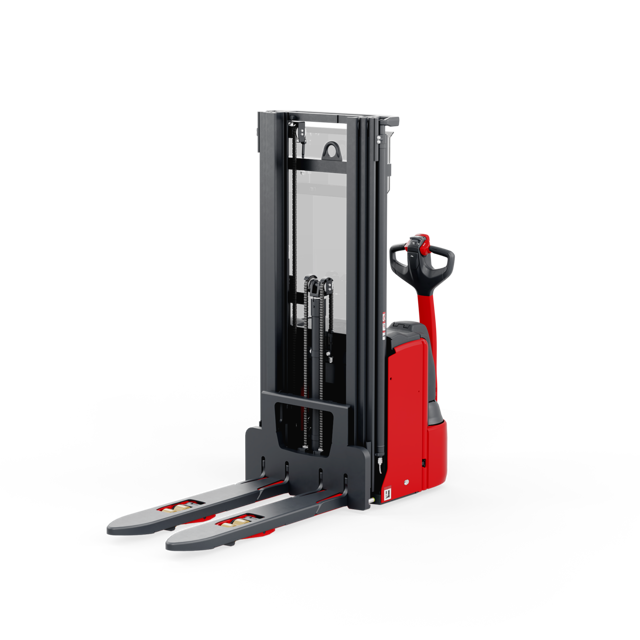

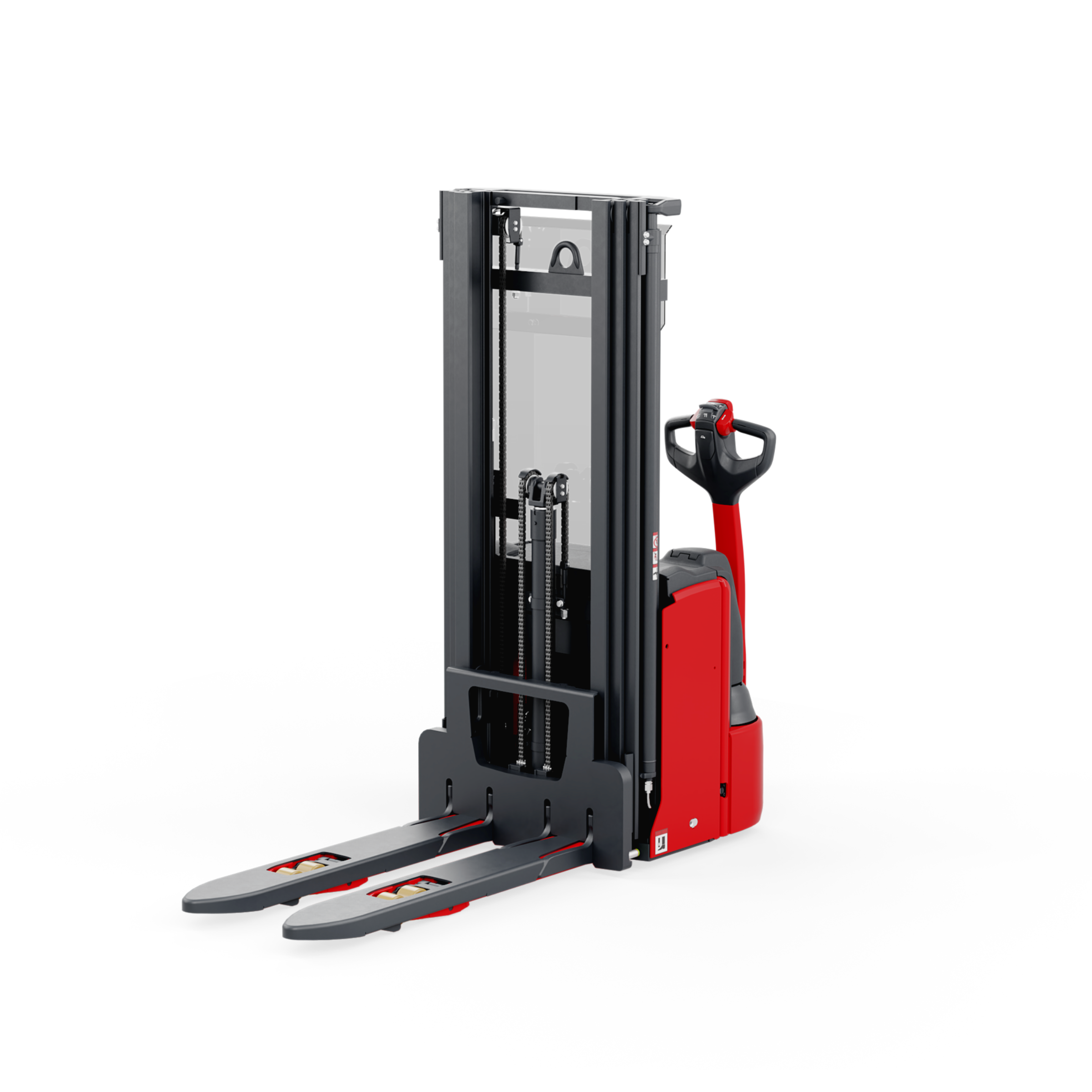

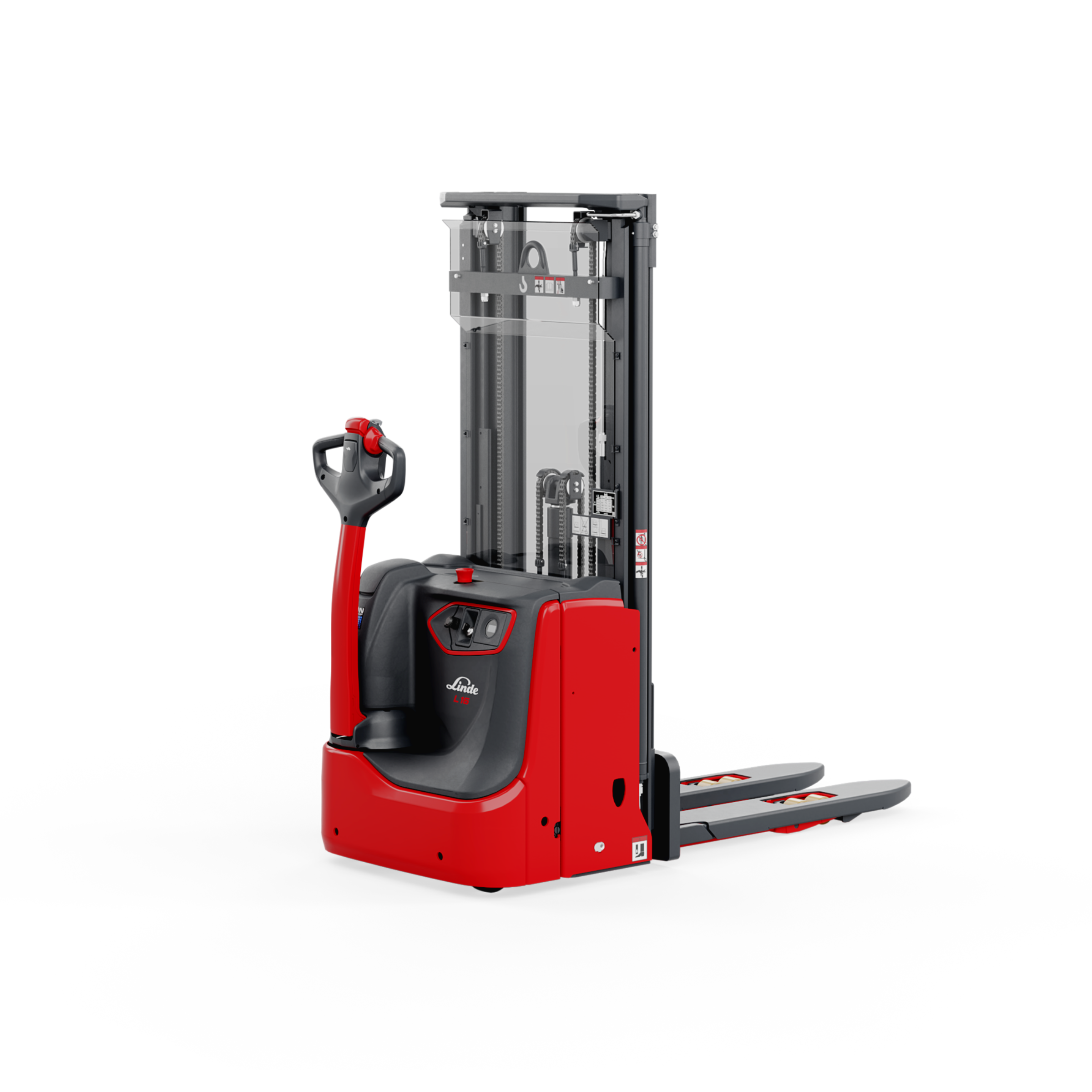

L10-L16 B Series 4596 Electric Pallet Stacker
With lift capacities up to 1.6 tonnes and lift heights reaching 5.4 metres, the L10–L16 B electric pallet stacker offers impressive versatility. Its double-decker function also enables the efficient transport of two pallets at once over longer distances.
Featuring ergonomic tiller controls and a low chassis design, these pallet stackers ensure both safety and operator comfort throughout use.
Asymmetrical tiller provides a clear view of the forks and surrounding area.
Low chassis and optional active foot bumper enhance safety.
Extended tiller arm keeps the operator at a safe distance from the truck.
Optional load management system monitors remaining load capacity.
Safe manoeuvring supported by optional creep speed and proportional speed functions.
Off-set, ergonomic tiller head with controls positioned for easy access.
Comfortable controls allow one-handed operation of all functions.
Long, low-mounted tiller ensures smooth and precise steering.
Spacious storage compartments offer room for work materials.
OptiLift proportional lifting system allows precise and controlled load handling.
Powerful 1.1 kW drive motor ensures efficient and productive transport.
Capable of reaching speeds up to 6 km/h when fully loaded.
Soft-landing forks provide smooth and gentle load lowering.
On-board charger compatible with both lead-acid and lithium-ion batteries.
Robust design enables long service intervals.
Maintenance-free 1.1 kW three-phase motor.
Easily accessible components for fast maintenance.
CAN bus connectivity enables truck data to be read out quickly.
